Length: 19'
Beam: 7.10'
Power: 90hp Max
Draft: 6-8"
TripleTail 19
Designed for Open Water Fishing.
The TripleTail 19′ Side Console is a purpose-built fishing platform — designed for anglers who want maximum deck space without giving up shallow-water performance or a refined ride.
With the console positioned to the side, the deck stays open and fishable from bow to stern. Lightweight yet stable, it poles quietly, runs efficiently, and handles everything from inshore flats to longer coastal runs.
This is a skiff built for anglers who fish hard and need every inch of their boat to work.
LOA:
Industry-leading wide beam for added stability
19 Foot
Beam:
Industry-leading wide beam for added stability
7.10 Foot
Weight:
Varies by engine & options (Unrigged Weight)
700 Pounds
Draft:
Engine Dependent
6-8 Inches
Power:
Rated for outboards (Mercury, Suzuki, and Yamaha configurations available)
90 HP MAX
Capacity:
Approx. 800lbs
6 Persons
Livewell:
Dedicated fishwell
28 Gallons
Fuel Tank:
29 Gallons
LOA:
Industry-leading wide beam for added stability
19 Foot
Beam:
Industry-leading wide beam for added stability
7.10 Foot
Draft:
Engine Dependent
6-8 Inches
Livewell:
Dedicated fishwell
28 Gallons
Fuel Tank:
29 Gallons
Capacity:
Approx. 800lbs
6 Persons
Power:
Rated for outboards (Mercury, Suzuki, and Yamaha configurations available)
90 HP MAX
Weight:
Varies by engine & options (Unrigged Weight)
700 Pounds
Performance
Shallow-Water Precision
Hull & Handling
Dual-step transom designed specifically for flats boats
Transom sponsons for increased flotation in shallow water
Ride & Efficiency
Dry, smooth, and predictable ride
Quick to plane with moderate horsepower
Optimized for shallow-water efficiency without sacrificing stability
Draft & Stability
Approx. 6–8” draft (engine dependent)
7.10’ wide beam for exceptional lateral stability when poling or casting
Power & Systems
Rated for 90 HP MAX outboards
Mercury, Suzuki, and Yamaha options available
Optional 4” jack plate (required for certain engine configurations)
Configurations
Fishing-First Layout
How the boat is laid out and built around fishing.

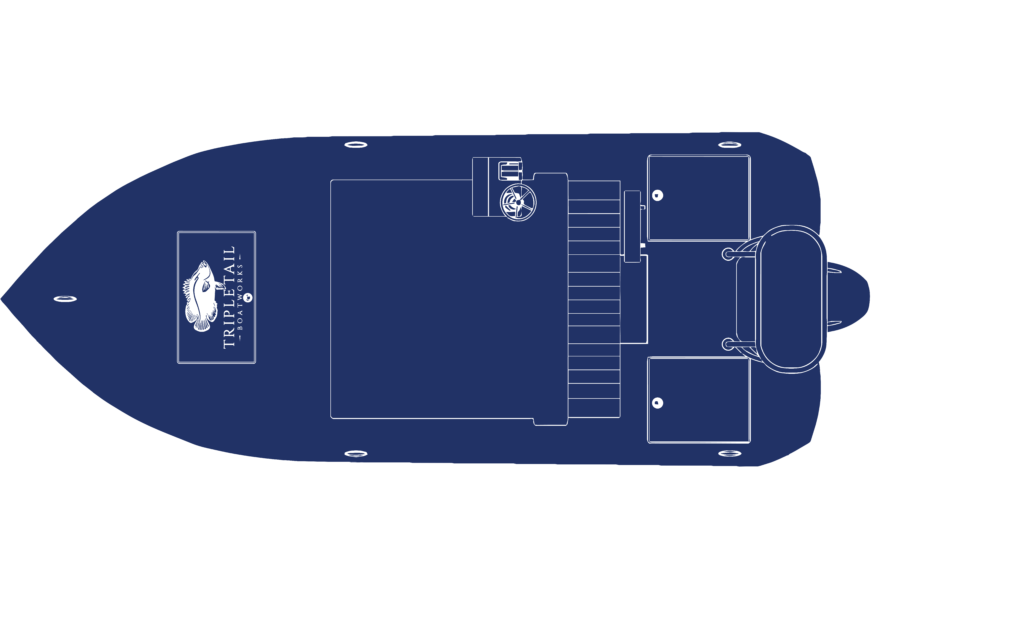

Deck Layout
Open, uncluttered technical layout
Large forward and aft casting platforms
Designed for free movement and precise presentations
Storage
Integrated dry storage throughout cockpit and gunwales
Rod storage for up to 13 rods
Tackle and gear storage positioned for accessibility
Livewells
Dual 28-gallon baitwells with pump and remote valve
Dedicated 28-gallon fishwell
Fishing Options
Custom poling platform
Custom casting platforms
Trolling motor packages (12V / 24V with batteries)
Single or dual shallow-water anchor systems
Finish
Materials & Details
Materials, construction, comfort, and personalization
Construction
Carbon fiber hull
Precision lamination process
Integrated stringer system for strength and weight efficiency
Rigging
Marine-grade copper wiring
Heat-shrink terminals throughout
Clean, serviceable rigging layout
Aesthetics
Two-tone paint and custom gelcoat options
EVA foam flooring (cockpit / topside)
Cooler console seating and seat upgrades
Audio system options
Trailer & Extras
Standard trailer included
Optional swivel custom trailer
Electronics upgrades (9” / 12” displays, single or dual)
