19' Technical
The Flagship of the TripleTail line and industry leading flats fishing boat.
Length: 19'
Beam: 8'
Power: 60-150hp
Draft: 6-8'
TripleTail 19
Designed for Technical Water.
The TripleTail 19’ is a true technical skiff – built for anglers who spend their time in skinny water and demand precision, efficiency, and control above all else.
Lightweight yet remarkably stable, this platform is engineered to pole quietly, plane quickly, and remain composed under load. From tight flats and tailing fish to longer runs between spots, the 19’ delivers a refined, predictable ride without excess.
This is a skiff for anglers who fish deliberately and expect their boat to do the same.
Specifications
The Technical Skiff
Fast.
Light.
Precise.
Tactical.
LOA:
Industry-leading wide beam for added stability
19 Foot
Beam:
Industry-leading wide beam for added stability
8 Foot
Weight:
Varies by engine & options (composite carbon fiber & Kevlar construction)
Draft:
Engine dependent
6-8 Inches
Power:
60–150 HP
Capacity:
Approx. 800lbs
6 Persons
Livewell:
Dual 28-gallon baitwells
Dedicated 28-gallon fishwell
Fuel Tank:
29 Gallons
Performance
Shallow-Water Performance
Hull & Handling
Dual-step transom designed specifically for flats boats
Transom sponsons for increased flotation in shallow water
Ride & Efficiency
Dry, smooth, and predictable ride
Quick to plane with moderate horsepower
Optimized for shallow-water efficiency without sacrificing stability
Draft & Stability
Approx. 6–8” draft (engine dependent)
8’ wide beam for exceptional lateral stability when poling or casting
Power & Systems
Rated for 90–150 HP outboards
Mercury, Suzuki, and Yamaha options available
Optional 4” jack plate (required for certain engine configurations)
Configurations
Fishing-First Layout
How the boat is laid out and built around fishing.

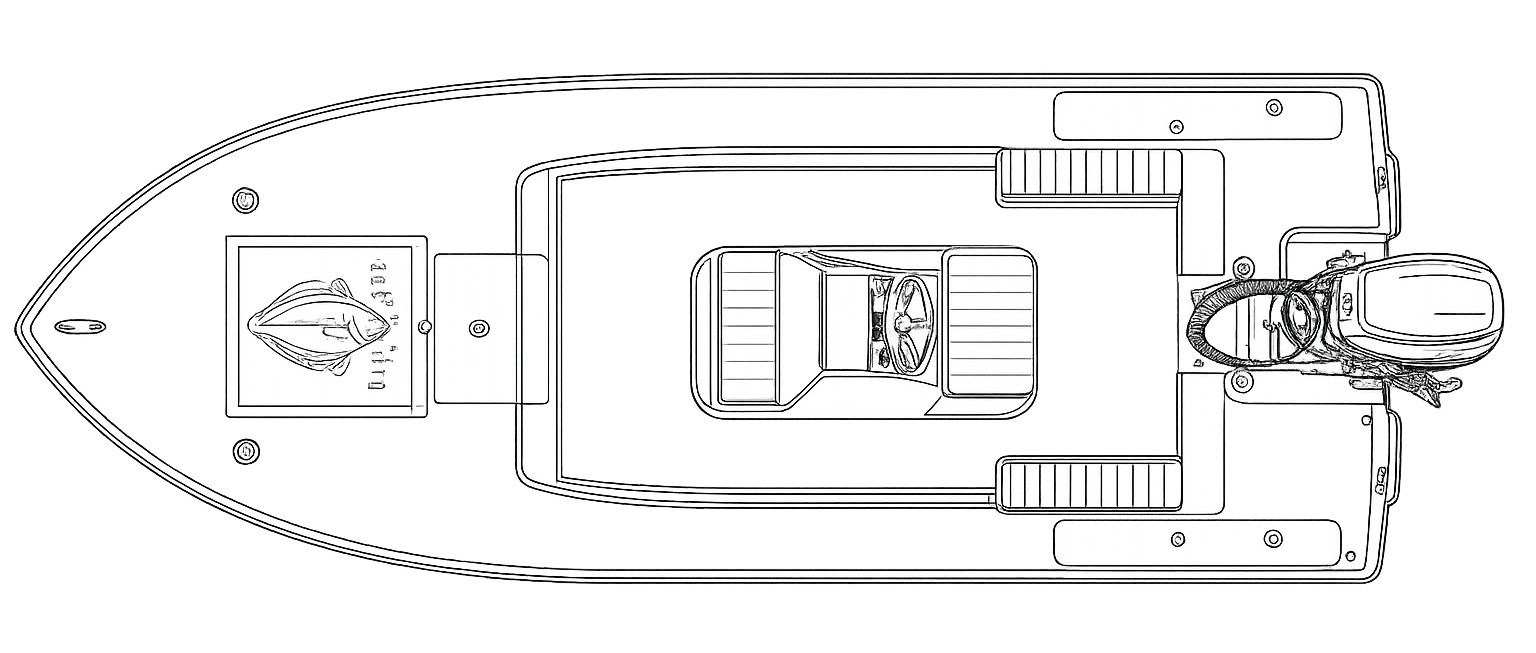

Deck Layout
Open, uncluttered technical layout
Large forward and aft casting platforms
Designed for free movement and precise presentations
Storage
Integrated dry storage throughout cockpit and gunwales
Rod storage for up to 13 rods
Tackle and gear storage positioned for accessibility
Livewells
Dual 28-gallon baitwells with pump and remote valve
Dedicated 28-gallon fishwell
Fishing Options
Custom poling platform
Custom casting platforms
Trolling motor packages (12V / 24V with batteries)
Single or dual shallow-water anchor systems
Finish
Materials & Details
Materials, construction, comfort, and personalization
Construction
Carbon fiber & Kevlar composite hull
Precision lamination process
Integrated stringer system for strength and weight efficiency
Rigging
Marine-grade copper wiring
Heat-shrink terminals throughout
Clean, serviceable rigging layout
Aesthetics
Two-tone paint and custom gelcoat options
EVA foam flooring (cockpit / topside)
Cooler console seating and seat upgrades
Audio system options
Trailer & Extras
Standard trailer included
Optional swivel custom trailer
Electronics upgrades (9” / 12” displays, single or dual)
